ADX10FLP - MINIATURIZED CONDENSER FLUTE MICROPHONE
ADX10FLP - MINIATURIZED CONDENSER FLUTE MICROPHONE
Couldn't load pickup availability

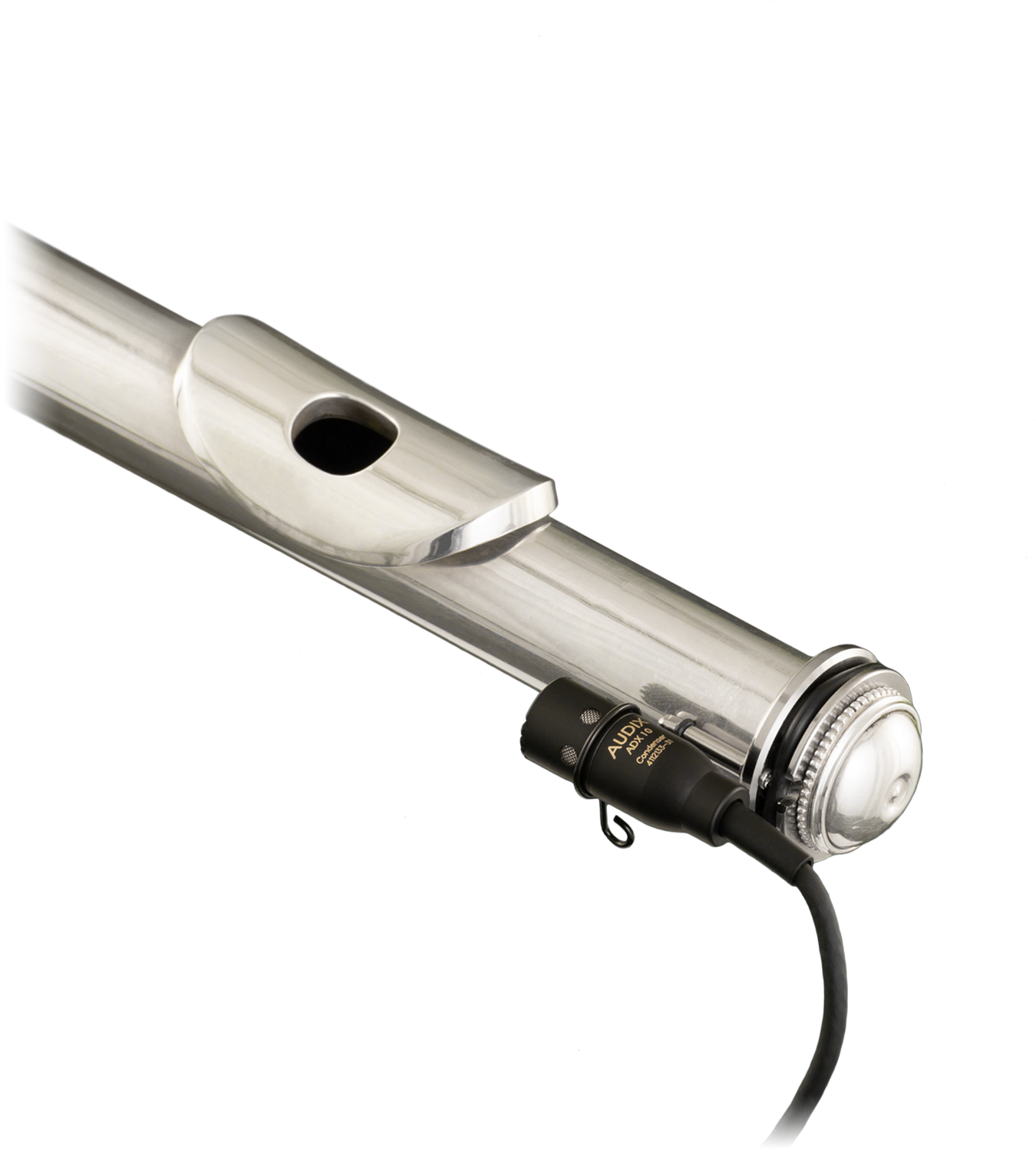

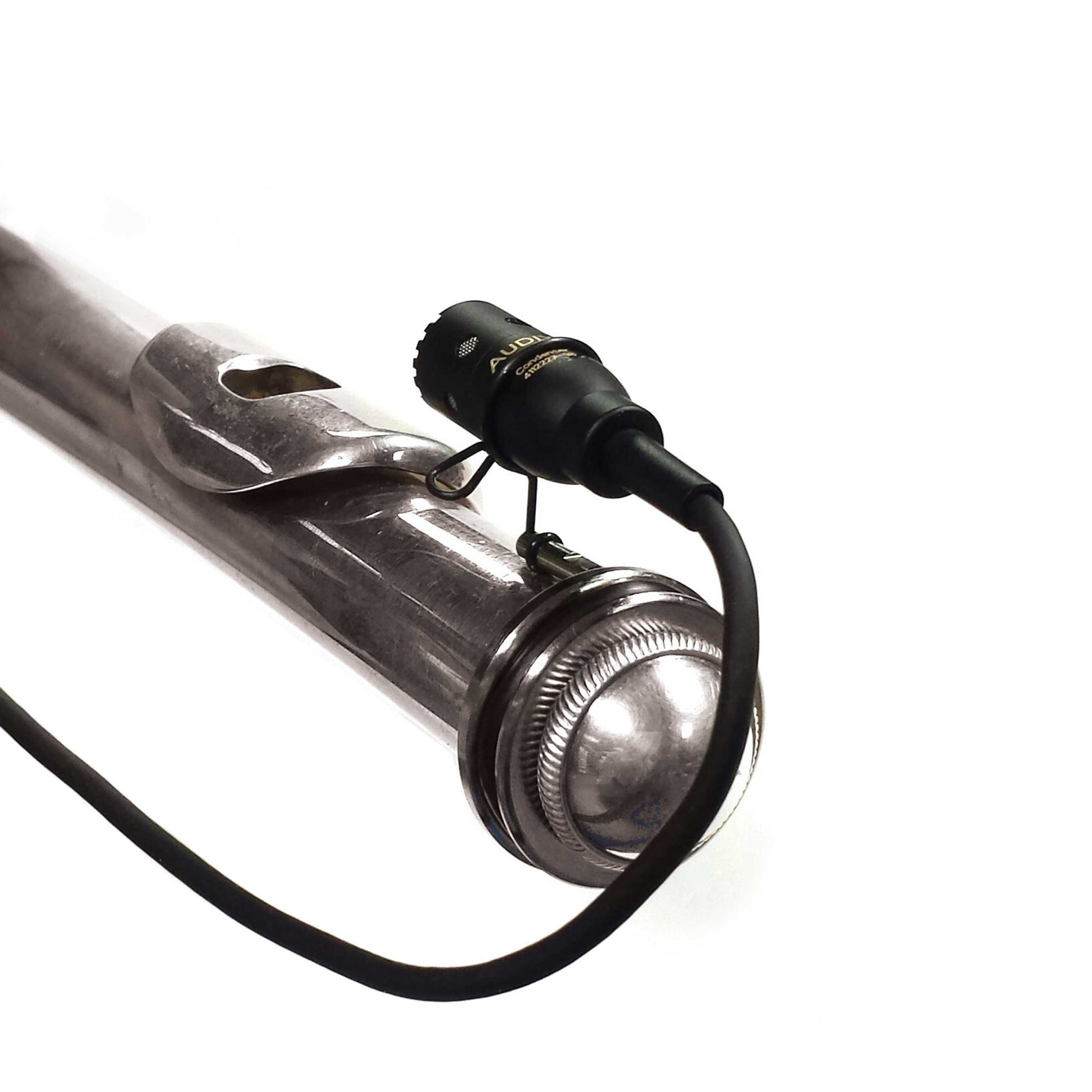

The ADX10FLP is a cardioid condenser flute microphone that utilizes a uniformly controlled cardioid polar pattern. This feature assists in isolating the miked sound at the embouchure hole from other instruments or vocals on stage. With a smooth and accurate frequency range of 50 Hz-18 kHz, the ADX10FLP is lightweight, low profile, and furnishes the flutist’s natural sound with an exceptional transient response.

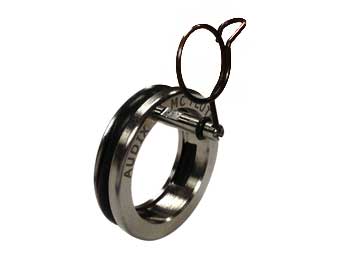

The ADX10FLP, specifically for use with a standard flute, includes a clip (attaches to the head joint), an 8′ cable terminating to a mini XLR-f connector, and a phantom power adapter (APS911). Other model versions include the ADX10FL for use with Audix wireless systems.
Manufactured to high standards and tight tolerances, the ADX10FLP miniaturized condenser flute mic features a modular threaded capsule, machined brass body with a matte black finish, high-quality shielded microphone cable, and a variety of optional accessories.
Designed, machined, assembled, and tested by Audix in the USA.
| Transducer Type | Pre-polarized Condenser |
|---|---|
| Frequency Response | 50 Hz – 18 kHz |
| Polar Pattern | Cardioid |
| Output Impedance | 250 ohms |
| Sensitivity | 4.5 mV / Pa @ 1k |
| Signal to Noise Ratio | >65 dB |
| Equivalent Noise Ratio | <29 dB (A-weighted) |
| Maximum SPL | ≥120 dB |
| Power Requirements | 5-52V phantom |
| Connector | Shielded 3’ terminating to a minature 3 pin XLRf |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 |
| Materials / Finish | Machined brass capsule / Black finish |
| Weight | 110 g / 4 oz |
| Length | 25 mm / 0.98 in |
