IK Multimedia

Axe I/O One

Axe I/O One

Regular price Rs 55,000.00 LKR
Regular price Sale price Rs 55,000.00 LKR
Sale Sold out

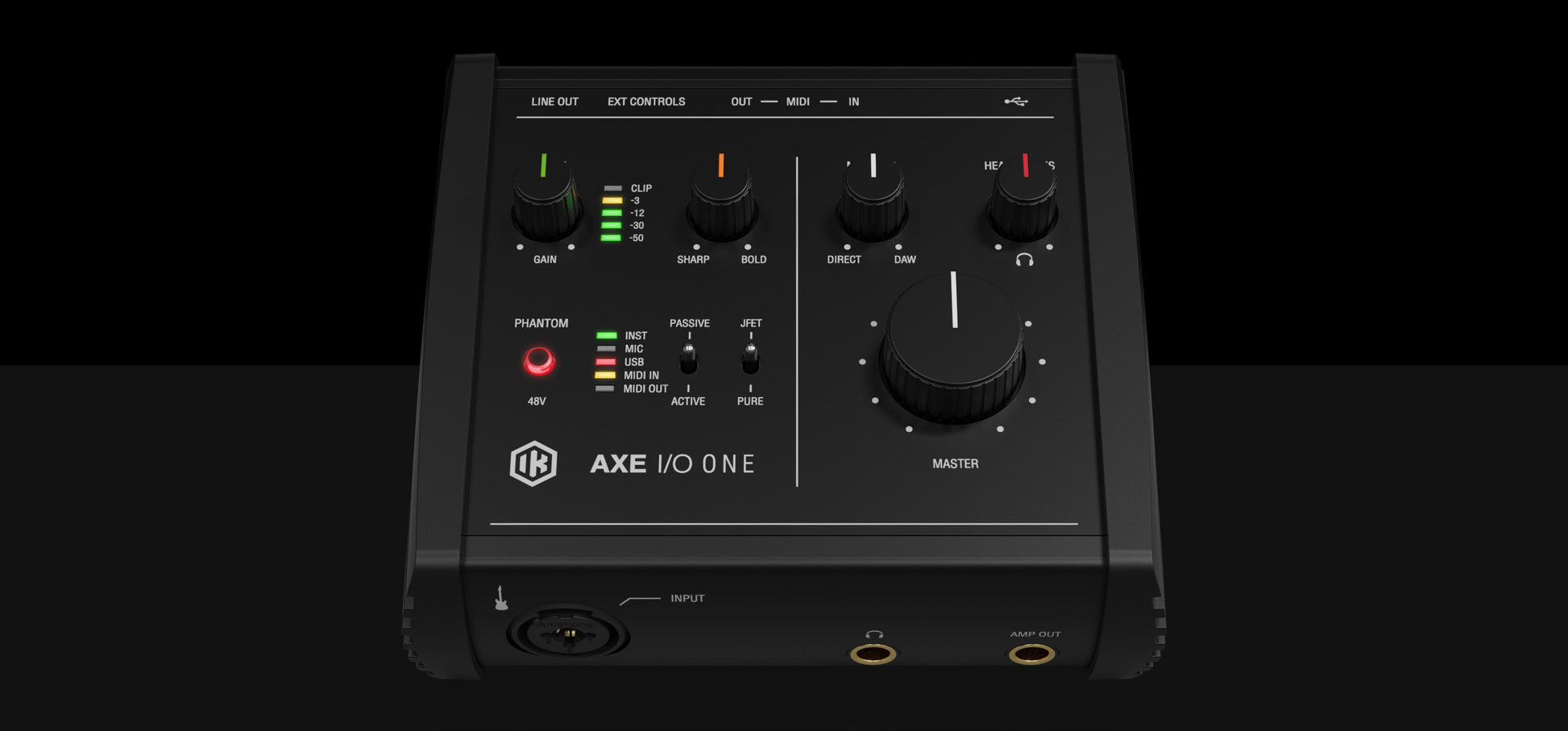

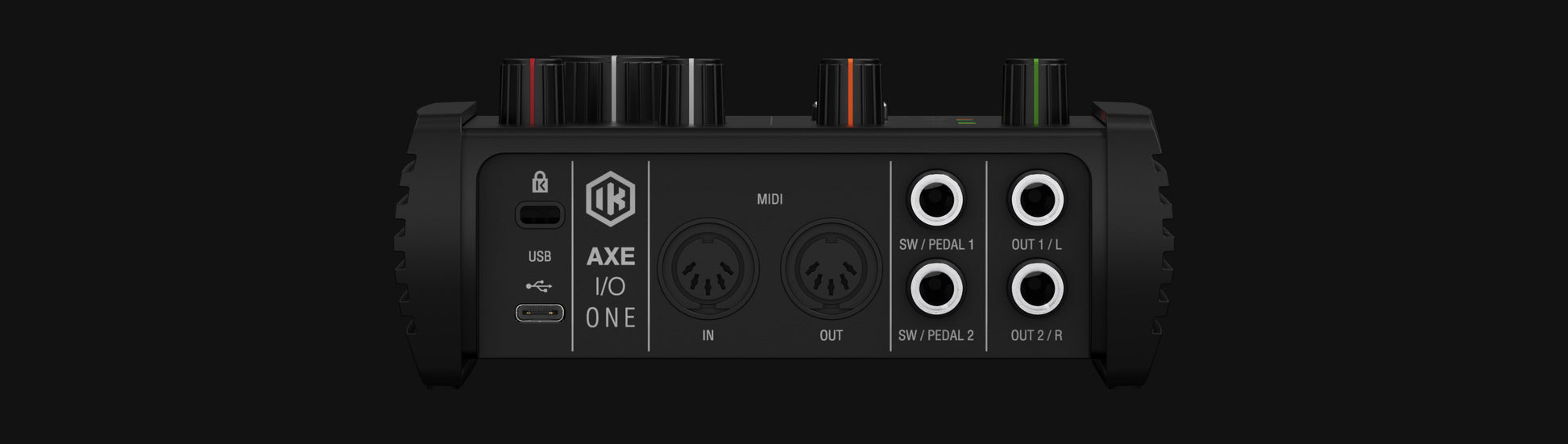

A do-it-all interface for guitar and bass players

AXE I/O ONE sports IK’s exclusive Z-TONE® impedance control, JFET input for warm, tube-like sound, dedicated Amp Out for practicing or reamping, pickup selector, external volume/wah pedal or switch controller inputs, and includes award-winning AmpliTube and TONEX software with access to thousands of presets, amp and pedal rig tones on ToneNET for a complete digital studio rig that sounds like a pro.

Specs

AXE I/O ONE Specifications

Common

  • AD and DA resolution: 24-bit
  • Sampling rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz
  • Host connection: USB Type-C socket

Mic Input

  • Configuration: Class-A discrete differential microphone preamp, pin 2 hot
  • Input impedance: 4 kOhms differential
  • Input level, min gain: 0 dBFS is obtained with a +7 dBu signal at the XLR input
  • Input level, max gain: 0 dBFS is obtained with a -42 dBu signal at the XLR input
  • Frequency response: From 9 Hz to 45 kHz within 0.5 dB (96 kHz sample rate)
  • Dynamic range: 108 dB(A)
  • THD+N: -104 dB(A) at -10 dBFS

Instrument Input

  • Configuration: Multiple topology instrument preamp
  • Input impedance, PASSIVE mode: Variable from 1 MOhms down to 2.2 kOhms
  • Input impedance, ACTIVE mode: 10 kOhms
  • Input level, min gain: 0 dBFS is obtained with a +10.5 dBu signal at the TS input
  • Input level, max gain: 0 dBFS is obtained with a -19 dBu signal at the TS input
  • Frequency response: From 11 Hz to 45 kHz within 0.5 dB (96 kHz sample rate)
  • Dynamic range: 108 dB(A)
  • THD, PURE mode: 0.0018 % (-1 dBFS input)
  • THD, JFET mode: 0.42 %

Line Outputs 1-2 (Monitor)

  • Configuration: Electronically balanced
  • Output impedance: 150 Ohms balanced, 75 Ohms unbalanced
  • Output level: 0 dBFS corresponds to +12.8 dBu
  • Frequency response: From 10 Hz to 42 kHz within 0.5 dB (96 kHz sample rate)
  • Dynamic range: 108 dB(A)
  • THD @ -1 dBFS: 0.0015%
  • THD+N: -95 dB(A) at -1 dBFS
  • Channels 1-2 crosstalk: 109 dB(A)

Output 3 (Amp output)

  • Configuration: Unbalanced, floating, with selectable ground lift
  • Output impedance: 75 Ohms
  • Output level: 0 dBFS corresponds to -3.5 dBu
  • Frequency response: From 20 Hz to 44 kHz within 1 dB (96 kHz sample rate)
  • Dynamic range: 108 dB(A)
  • THD+N: -93 dB(A)

Headphone Output

  • Output impedance: Virtually ideal source (zero Ohms) until clipping
  • Maximum output level: +5 dBu into 50 Ohms load (approx 40 mW)
  • Frequency response: From 1 Hz to 44 kHz within 1 dB (96 kHz sample rate)
  • Dynamic range: 108 dB(A)

Package includes

  • AXE I/O One
  • USB A-Type to USB C-Type connection cable (1.5m/4.32ft)

Dimensions


  • Size: 13cm/5.12" x 14.5cm/5.71" x 5.2cm/2.04"
  • Weight: 0.37kg/0.8lb

Compatibility


Computers

64-bit application. Requires a 64 bit CPU and Operating System.

Mac® (64-bits)

Minimal: macOS 10.15 or later. One free USB port.

Windows® (64-bits)

Minimal: Windows 10 or later. One free USB port.
